Product Name:

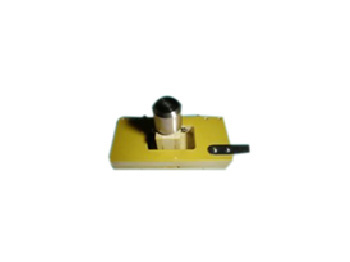

DB-4 Semiconductive rubber and plastic Resistance Tester
AddDate: 2014-05-16
- Summary:
It’s used for testing the cable-use rubber and plastics semi-conductive materials’ resistivity and all kinds of conductive rubber products’ resistance.
Applicable scope: cable factory, conductive rubber and plastic material factory, computer factory, electronic watch factory, colleges and universities, scientific research departments, etc. It has high accuracy, good stability, compact structure, convenient operation, etc.
Standards:
GB3048.3-2007
Technical parameters:
◆ Measuring range: 10ˉ4~10³Ω.cm
◆ Measuring error: ≤ (0.5%rd±2d)
◆ Current electrode:
Width: 50mm
Width contacted with sample: 5mm
Distance between two current electrodes: 110mm
◆ Potential electrode:
Width: 50mm
Radius contacted with sample: R<0.5mm
Distance between Two potential electrodes: 20mm±2%
◆ Automatic testing, measurement range: 200kΩ, 20kΩ, 2kΩ, 200Ω. Choose the range and input the specimen’s width after measuring the resistance, it will display the volume resistivity automatically. And it can maintain the testing result.
◆ Overall dimension: 420*300*200mm
◆ Power: AC220V, 50/60Hz, 0.5A
◆ Oven: Customers’ optional choice.
