Product Name:

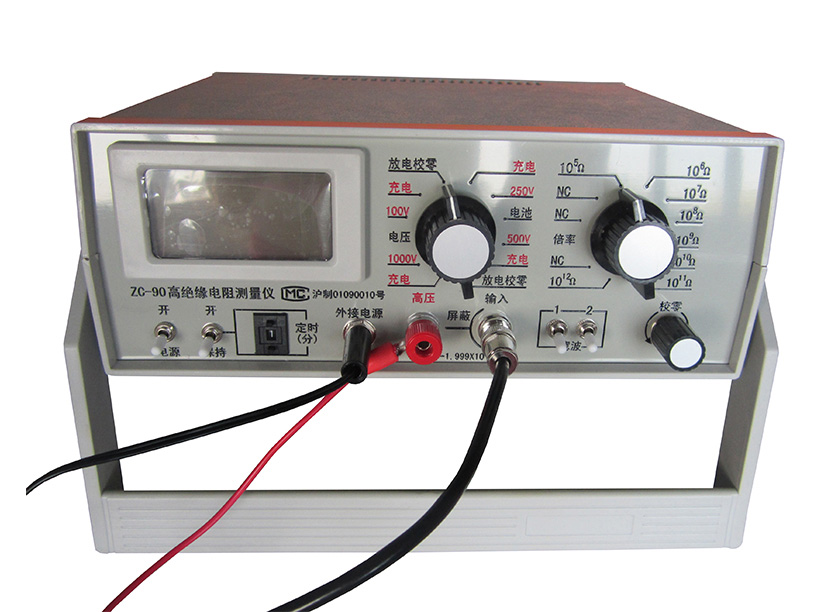

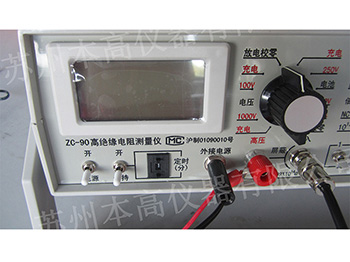

ZC-90 Insulation Resistance Meter
AddDate: 2014-05-16
- Summary:
It’s used for resting the resistance of electrical insulating materials, wire and cables, anti-static engineering and some other electrical products.
Features:
◆ The most advanced international high resistance, micro electric current device.
◆ High accuracy, strong resolution, strong anti-jamming capability, stable indication, small size, easy operation, and strong battery general.
Standards:
GB/T3048.5-2007
Technical parameters:
ZC-90:
◆ Rated voltage: 100V, 250V, 500V, 1000V
◆ Range:105~ 2*1014Ω
◆ Usage: High measuring insulation resistance, high value resistors, electric equipment, electric equipment, electric wire and cable insulation resistance measurements.
ZC-90E:
◆ Rated voltage: 100V, 250V, 500V, 1000V
◆ Range:105~2*1016Ω
◆ Usage: Super high insulation resistance measurements, common wire and cable and cross-linked polyethylene cable measurement, insulating material resistivity measurements.
ZC-90G:
◆ Rated voltage: 10V, 25V, 50V, 100V, 250V, 500V, 1000V
◆ Range:105~2*1017
◆ Usage: Super high insulation resistance measurements, common wire and cable and cross-linked polyethylene cable measurement, insulating material resistivity measurements. Weak current measurement, electronic components measurement, photoelectricity measurement, biological electricity measurement, atomic energy research etc.
◆ 3 1/2 digital display (with backlit lighting)
◆ Basic error: ±1%
◆ Equipped with a built-in timer, customers can preset the measuring time.
◆ When equipped with an electrode box, customers do the experiemts of rubber surface resistance and volume resistance. (Customers’ self choice.)
◆ Overall dimension: 280*240*105mm, ZC-90G: 320*290*115mm
◆ Power: AC220V, 50/60Hz, 0.1A
