Product Name:

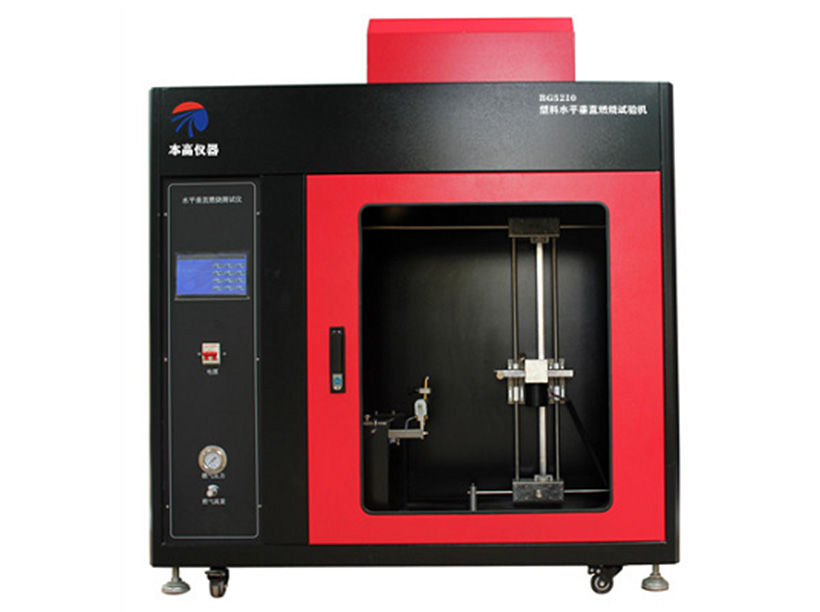

BG5210 Plastic Horizontal & Vertical Flame Tester
AddDate: 2014-05-16
- Summary:
The horizontal vertical burning tester is mainly used to measure the non-combustible properties of plastics under direct combustion of plastic or film under a specified fire source. To judge the fire resistance rating of the refractory material.
UL 94 is one of the most important UL safety test methods and important standards. He is particularly important for plastics used in the electrical industry. The test method is based on UL's research on the flame retardant properties of plastics. It is not only suitable for the electrical industry, but also for many other fields, suitable for lighting equipment, low-voltage electrical appliances, household appliances. The research, production and quality inspection departments of electrical and electronic products and their components, such as motors, tools, instruments and other electrical connectors, are also applicable to insulating materials, engineering plastics or other solid combustible materials industries.
Standards:
GB/T2408-2008,UL94
Technical parameters:
◆ Programmable controller touch screen + PLC control, realize control / detection / calculation / data display multi-function.
◆ High degree of automation: automatic recording of test time, automatic test results, automatic timing, automatic ignition, after the end of the flame, the Bunsen burner is automatically returned, you can choose whether to turn off the gas.
◆ You can choose whether to auto-ignite at startup.
◆ The front, back, up, and down of the style clip can be touch screen control. Start, stop, gas, timing, ignition, save, save, illumination, and exhaust are all realized by touch screen control, and the fingertip can be touched to complete the test.
◆ The timing button cooperates with the PLC to automatically record and store the burning time.
◆ The test time system automatically records and generates test results.
◆ Ambient temperature: room temperature ~ 40 ° C; relative humidity: ≤ 75%.
◆ Supply voltage and power: 220V ± 10% 50Hz power 150W.
◆ The horizontal and vertical burning test programs can be switched on the touch screen, and the test results can be stored in the touch screen, and the test results can be queried.
◆ The Bunsen burner is automatically ignited, automatically timed, and the ignition time is set arbitrarily (can be preset on the touch screen).
◆ Bunsen burner inner diameter 9.5mm ± 0.5mm.
◆ The auto-ignition can be selected before the Bunsen burner starts.
◆ After the flame is applied, the Bunsen burner is automatically returned, and the Bunsen burner is returned to select whether to turn off the gas.
◆ Gas source: liquefied petroleum gas (additional methane gas during arbitration).
◆ Steel plate electrostatic spray box.
◆ More than 0.5 cubic meters (supports non-standard 0.75m3, 1m3 size and stainless steel cabinet).
◆ The weight of the instrument is about 100kg.
◆ Working power: 220VAC 50HZ.
◆ Timing range: 0~999.9s Timekeeping accuracy: 10s±0.2s 30s±0.2s.
◆ Shi Yan time: 0 ~ 999.9S (adjustable, can be preset on the touch screen).
◆ Afterflame time: 0 ~ 999.9S.
◆ Afterburning time: 0 ~ 999.9S.
◆ The linear burning rate (V) PLC is automatically calculated and the touch screen is displayed and saved.
◆ Burning angle: 0°, 20°, 45° can be selected.
◆ Flame height: adjustable from 20mm to 175mm.
◆ Flame temperature: (100-1000) °C adjustable.
◆ Gas flow rate: gas flow rate 105ml/min-1000ml/min adjustable.
◆ Burning lamp: inner diameter of lamp tube is 9.5±0.3mm, length: 100mm±10mm.
◆ Time device: can be accurate to 0.1S.
◆ Position adjustment: The sample holder can be adjusted up and down, left and right, and the combustion seat can be adjusted back and forth, and the adjustment stroke is large.
