Product Name:

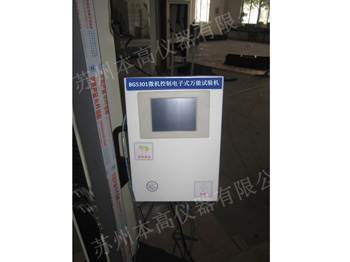

BG5301 Computer control of Electronic Tensile Tester (Double columns)


AddDate: 2016-06-02
Summary:
It’s used for material’s tensile, compression, bending, tearing etc tests.
Applicable scope: Rubber, plastic, textiles, electric wire and cable, composite materials, leather, waterproofing materials, non-woven fabric, paper and other non-metallic materials and metal wire, metal foil, sheet metal and metal bar, and other metal materials.

Standards:
GB, UL, VDE

Technical parameters:
◆  Max testing force: 5KN, 10KN, 20KN (customers’ self choice)
◆  Effective travel: about 600mm
◆  Testing width: 400mm
◆  Testing force’s relative error: ≤±1%
◆  Speed range: 30~300mm/Min
◆  Displacement resolution: 0.01mm
◆  Transmission yoke plate: It’s made of high carbon steel, with great mechanical performance strength, without deformation.
◆  Transmission screw: §30 high precision seamless ball screw, which will not transform after long use.
◆  Clip surface process: All the clips are made of hard chromium plating processing. Clip block uses Japanese imported tool steel, SKD-11 high frequency processing, above HRC55, which has high resistance to wearing and impacting.
◆  Guide rod bearing: Use Japanese NSK ball linear bearing.
◆  Guide rod: It’s made of two ∮30 South Korea Taijing guide rods. Its surface is of high temperature and hard chromium plating processing, above HRC60.
◆  Main bearing: Uses the Japanese NSK high carbon ball bearing (additional iron cover, anti-dust)
◆  Speed-reduction device: Italy's European precision vacuum casting aluminium reduction machine, 1:30
◆  Anti-dust device: Uses the Taiwan inhibitory range dust cover to protect the screw.
◆  Main body surface process: Uses the American Dupont powder, electrostatic painting technology, and cured by high temperature of 200 ℃, which will never fade.
◆  Display mode: Windows XP testing software + computer display.
◆  Overall Outside dimension: 980*500*1650mm
◆  Power: AC 220V, 50/60Hz, 5A
◆  Computer: Customers’ optional choice
