Product Name:
BG5214 Fluorine Content Measuring Device for Wire and Cable


AddDate: 2019-08-07
Summary:
According to GB/T12706-2008 "rated voltage 1kN (Um = 1.2kN) to 35 kV (Um = 40.5kV), extruded insulated power cable and accessories", IEC60684-2:2003 standard requirements. Suitable for testing power cable fluorine content testing equipment.

Standards:
GB/T12706-2008 IEC60684-2:2003

Technical parameters:
◆  The units of pF, mol/L, mg/L and ppm can be selected for calibration and measurement, and switched
◆  Self-setting the standard solution of two-point fluoride ion concentration, automatically calibrating, directly measuring the fluoride ion concentration of the sample;
◆  The intelligent mixer can set a fixed stirring speed, which is convenient and reliable.
◆  Intelligent functions such as automatic calibration, automatic temperature compensation, data storage, timing measurement, RS232 output, clock display, function setting and self-diagnosis information

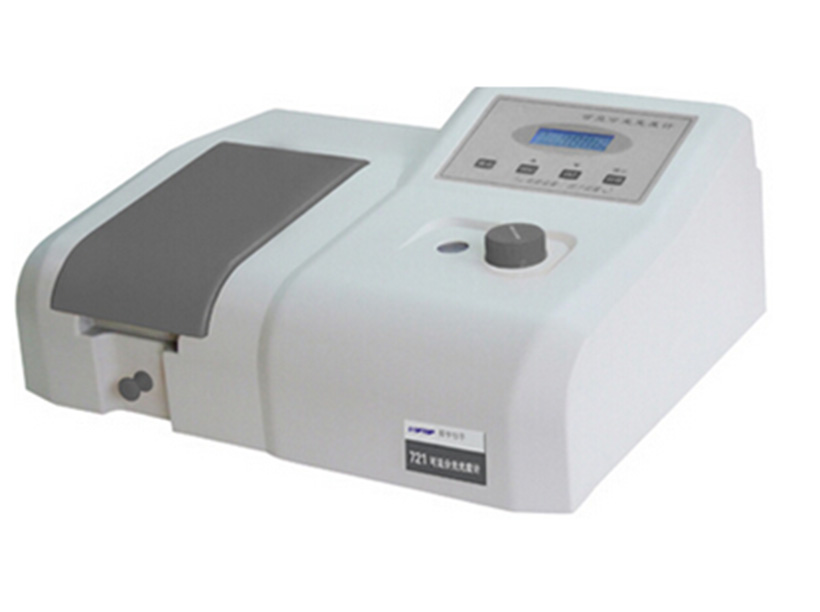

◆  Configuration: Burning flask; Ion meter (spectrophotometer); Pipette; Reagent
