Product Name:

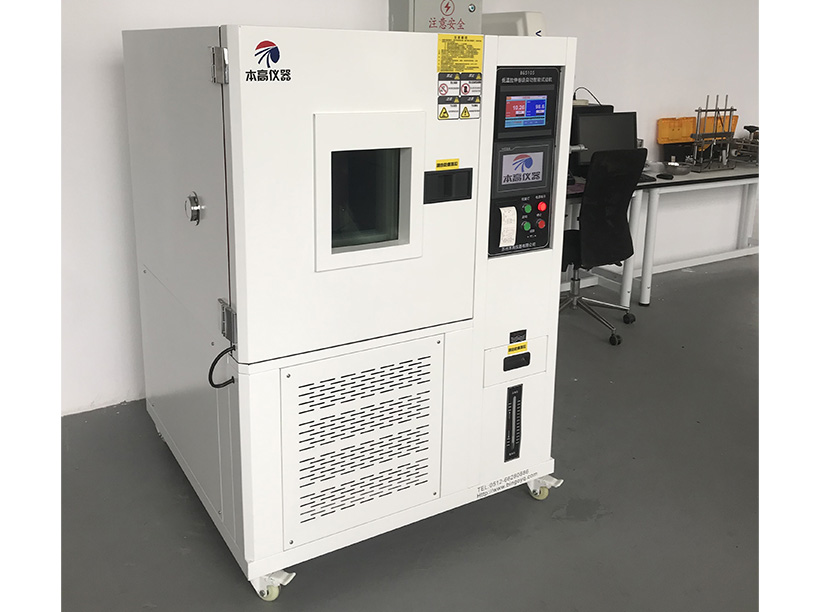

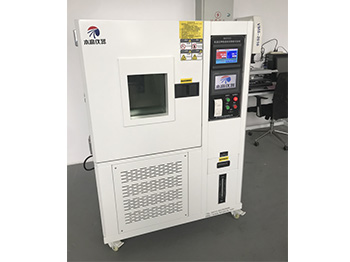

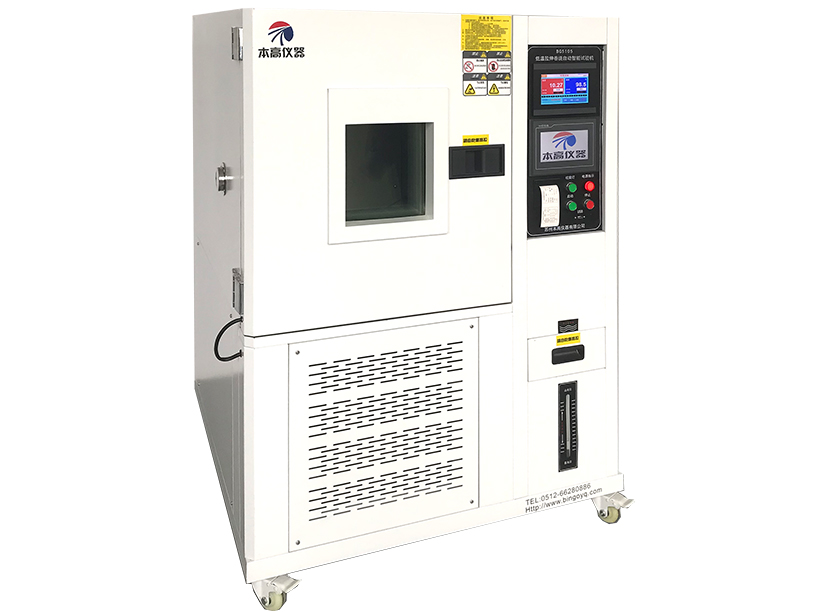

BG5105 Low temperature Tensile, Winding, Impact Automatic Tester


AddDate: 2016-06-02
Summary:

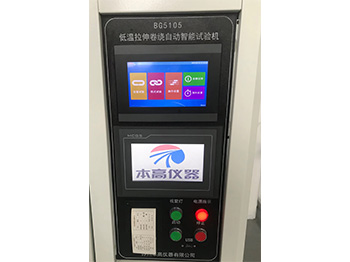

This machine is the latest automatic intelligent tester of low temperature tensile, winding and impact designed as one piece. This machine uses the human-machine interface control, intelligent operation, which is convenient and simple, and it’s equipped with a micro printer to print the test data. It has four equipments: High and low temperature test chamber, power-driven low temperature tensile device, low temperature winding device, and low temperature impact device.

Standards:
GB/T 2951-2008

Technical parameters:
◆  Low temperature chamber working studio: 500*600*500mm
◆  Temperature range: 40℃/-60℃/-70℃~150℃ (customers’ self choice)
◆  Temperature fluctuation: ±0.5℃ (unloaded)
◆  Temperature departure: ≤±2℃
◆  Average heating and cooling rate: 0.7℃~1.0℃/Min (unloaded)
◆  Time set range: 0~9999H

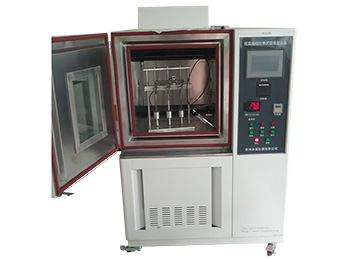

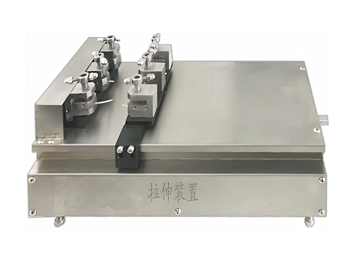

◆  Tensile device: Motor: 90W, installed in the low temperature chamber
    Max tensile length: 220mm
    Tensile speed: 20~30mm/Min
    Clip type: non-selftightening
    Sample size: Ⅰ, Ⅱ Dumbbell pieces
    Data display: direct reading elongation

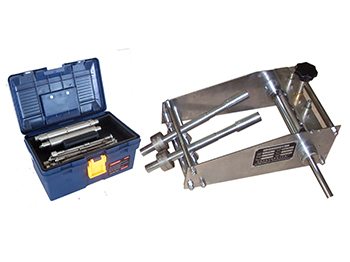

◆  Winding device: Sample diameter: Ф2.5~Ф12.5mm
    Winding-bar diameter: Ф4.0~Ф50mm, totally 17
    Thread set: Ф1.2~Ф14.5mm, 10 types, each two.
    Sample winding rounds: 2~10 rounds
    Winding rate: 5s/Round

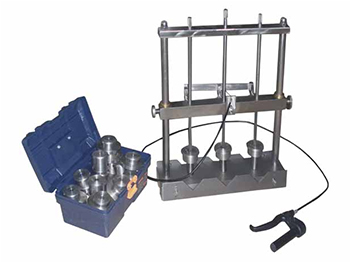

◆  Impact device: Impact height: 100mm
    Weights: 100g, 200g, 300g, 400g, 500g, 600g, 750g, 1000g, 1250g, 1500g.
    Material: Stainless steel
    This device can be devided into single group and three groups.
◆  Overall dimension: 1000*800*1500mm
◆  Power: AC220V, 50/60Hz, 20A
