Home / Product  Environmental Test Equipments

Product Name:

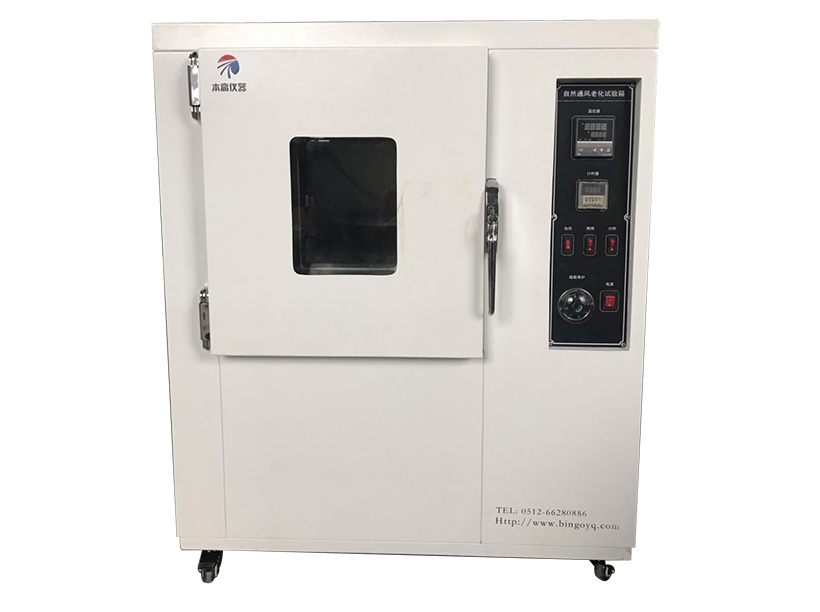

BG5101 Natural Ventilation Aging Oven


AddDate: 2016-06-02

Summary:
It’s used for Wire, cable, rubber and plastic industry as natural ventilation thermal aging test. It can be used together with our company’s hot-extensions test device to do cable and optical cable’s insulation and sheath’s hot extensions test.

Standards:
GB/T2951-2008
IEC60811-4-2: 1985

Features:
◆  Working studio is made of stainless steel, and shell is made of high quality steel plate, and surface is after the treatment of spray paint anticorrosion.
◆  Door seals use heat-resistance silicone rubber, which is healthy and safety.
◆  Temperature control adopts digital instrumentation, which is easy for operatin.

Technical parameters:
◆  Temperature range: RT~300℃
◆  Ventilation volumes: 8~20/H
◆  Temperature fluctuation: ±0.5℃
◆  Temperature uniformity: ±2℃
◆  Temperature deviation: ±1.5℃
◆  Heating up time: RT~300℃, about 50Min
◆  Power: 220V/2KW
◆  Inner dimension: 450(W)*450(D)*500(H) mm
◆  Overall dimension: 895(W)*700(D)*1215(H) mm
◆  Weight: About 110KG
